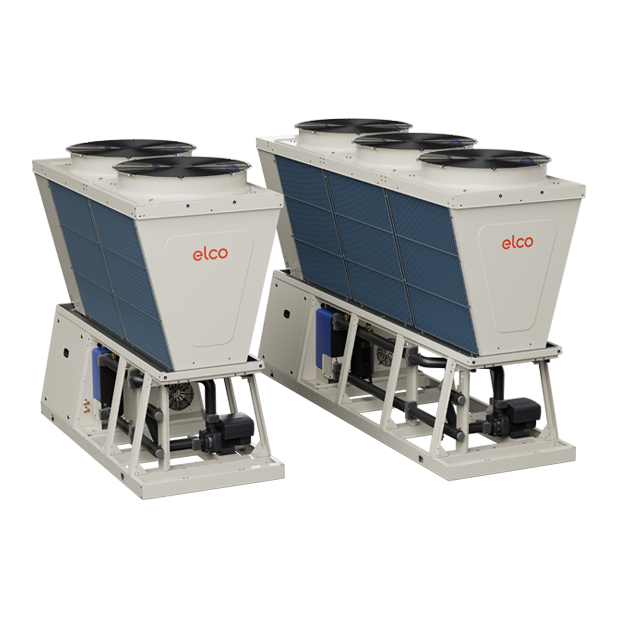

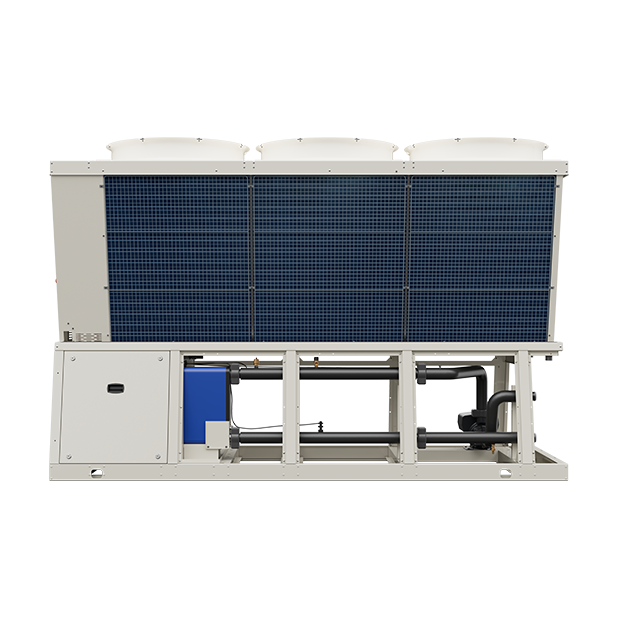

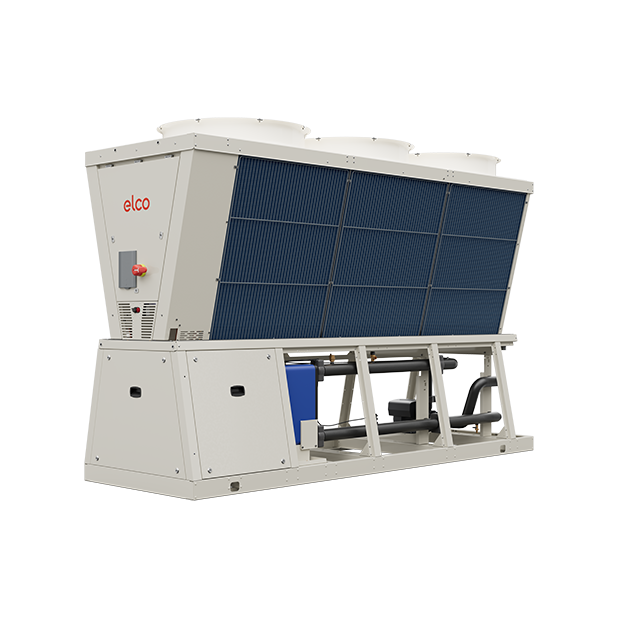

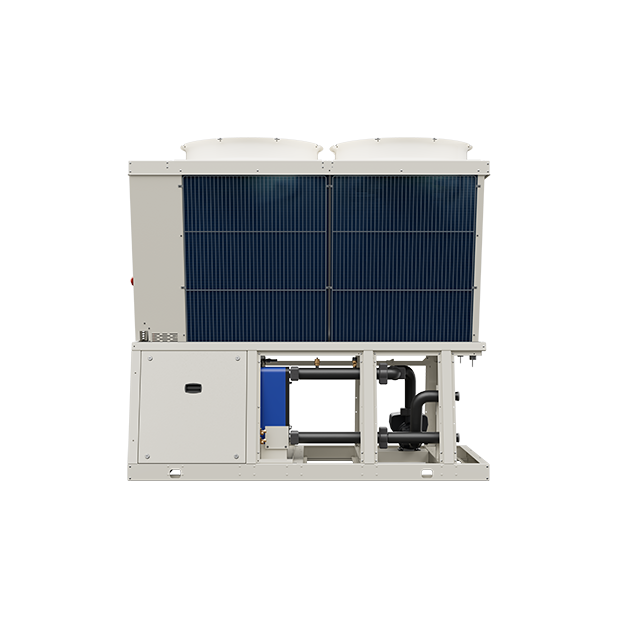

AEROTOP® EVO P

Air-to-water heat pump
Capacity 40 kW to 84 kW

The AEROTOP® EVO P is a full-inverter air-to-water heat pump for commercial heating, cooling and domestic hot water. With seven models from 40 to 84 kW, it offers flexible capacity options for a wide range of commercial applications. It delivers flow temperatures of up to 75 °C and is designed for operation at outdoor air temperatures down to -20 °C.¹

Key features at a glance

Energy efficiency up to A+++

Depending on the model, the AEROTOP® EVO P reaches up to A+++ at W35 and a SCOP of up to 4.70.¹

High flow temperatures up to 75 °C

Flow temperatures of up to 75 °C support new-build and renovation applications, subject to the specific system design.²

Scalable up to 1,350 kW

Seven models from 40 to 84 kW are available. Up to 16 units can be cascaded to provide heating capacity of up to 1,350 kW.³

Integrated protective measures

Physical separation, gas-leak sensors, an ATEX-certified extraction fan and a degasser are integrated into the system. Five models contain less than 5 kg of R290 per refrigerant circuit.⁴

Three configurable acoustic modes

Standard, Silent and Super-Silent are software-selectable. Depending on the mode, sound power level can be reduced by up to 10 dB(A).⁵

Flexible system integration

The AEROTOP® EVO P can be used as a stand-alone unit, in cascade or alongside an existing gas or oil boiler.⁶

Modulating performance control

Inverter technology adjusts compressor output to system demand. Operating data are available on the HMI and via Modbus.⁷

¹ Seasonal space heating energy efficiency class A+++ (scale A+++ to D) for EVO P 40, 47, 70 and 84, average climate at W35, and A++ for all models at W55; Regulation (EU) No 811/2013. SCOP: AEROTOP® EVO P 70 at W35, average climate; EN 14825:2022.

² Flow temperature: All AEROTOP® EVO P models; EN 14511 at A-5, compressor partialisation. System design: Subject to project-specific assessment of heat demand, system design and operating temperatures.

³ 16 × AEROTOP® EVO P 84; EN 14511 (A7/W35).

⁴ AEROTOP® EVO P 40, 47, 50, 56, 61: R290 charge < 5 kg per refrigerant circuit; DIN EN 378-1:2021-06.

⁵ Acoustic modes are software-selectable on site, per unit, with no hardware change. Values are the reduction in A-weighted sound power level (LwA) versus Standard mode, measured to EN ISO 9614-2 and declared per EN 12102-1 for all EVO P sizes 40–84 at rated conditions. Because they limit compressor and fan speed, Silent and Super-Silent mode also reduce the maximum available heating and cooling output – by up to approx. 13% and approx. 27% respectively at rated conditions.

⁶ Hybrid integration is subject to project-specific heat demand, hydraulics, controls, operating conditions and local requirements.

⁷ Depending on system demand, system design and operating conditions, this can support part-load operation and help manage start-stop cycling.

Technical Information

Technische gegevens AEROTOP® EVO P buitenunit
AEROTOP® EVO P buitenunit	Eenheid	Norm / Verordening	40	47	50	56	61	70	84
Energie-efficiëntieklasse voor ruimteverwarming bij 35 °C*	-	EU 811/2013	A+++	A+++	A++	A++	A++	A+++	A+++
Energie-efficiëntieklasse voor ruimteverwarming bij 55 °C*	-	EU 811/2013	A++	A++	A++	A++	A++	A++	A++
Seizoensgebonden efficiëntie voor ruimteverwarming (ETA_s) (35 °C) / SCOP	%/-	EN 14825	177/4,51	175/4,45	171/4,36	169/4,29	166/4,22	185/4,70	179/4,54
Seizoensgebonden efficiëntie voor ruimteverwarming (ETA_s) (55 °C) / SCOP	%/-	EN 14825	139/3,54	137/3,51	137/3,51	136/3,47	133/3,41	142/3,63	141/3,60
A7/W35 nominaal verwarmingsvermogen / COP	kW/-	EN 14511	40,1/3,92	46,8/3,71	50,4/3,81	55,8/3,78	61,0/3,73	70,2/3,91	84,4/3,74
A7/W45 nominaal verwarmingsvermogen / COP	kW/-	EN 14511	39,9/3,11	45,2/3,08	55,1/3,19	61,5/3,13	68,5/2,92	78,6/3,14	85,9/3,01
A7/W55 nominaal verwarmingsvermogen / COP	kW/-	EN 14511	37,0/2,71	42,9/2,57	47,4/2,67	51,2/2,60	55,7/2,55	65,9/2,74	76,6/2,56
A35/W18 nominaal koelvermogen / EER	kW/-	EN 14511	42,6/4,28	46,8/3,99	55,6/3,66	59,7/3,63	64,7/3,41	79,9/4,23	86,1/3,90
A35/W7 nominaal koelvermogen / EER	kW/-	EN 14511	34,9/2,84	38,5/2,81	49,9/2,58	54,0/2,46	58,2/2,35	67,8/2,86	72,7/2,64
Seizoensgebonden koelefficiëntie (SEER) (W7)	-	EN 14825	5,36	5,20	4,73	4,58	4,36	5,47	5,30
Maximale aanvoertemperatuur**	°C	EN 14511	75	75	75	75	75	75	75
Minimale buitentemperatuur (verwarming)	°C	-	-20	-20	-20	-20	-20	-20	-20
Geluidsvermogen LwA ErP	dB(A)	EN 12102	68	68	69	69	69	69	69
Geluidsvermogen LwA - Standard-modus	dB(A)	EN ISO 9614-2	75	75	77	77	78	78	79
Geluidsdruk - Standard-modus (1 m)	dB(A)	EN ISO 9614-2	57	57	59	59	60	59	60
Koudemiddelvulling \| type: R290; GWP₁₀₀ = 0,02	kg	EU 2024/573	4,9	4,9	4,5	4,5	4,5	10	10
Aantal compressoren	Nr	-	1	1	1	1	1	2	2
Volbelastingsstroom (F.L.A.)	A	-	34,9	34,9	53,3	53,3	53,3	65,8	65,8
Opgenomen vermogen bij vollast (F.L.I.)	kW	-	22,0	22,0	34,0	34,0	34,0	41,8	41,8
Waterinhoud (interne wisselaar)	l	-	6,2	6,2	8,4	8,4	8,4	10,7	10,7
Toestelgewicht (bedrijf / transport)	kg	-	714/694	714/694	760/740	760/740	760/740	1021/1001	1021/1001
Toestelafmetingen (BxHxD)	mm	-	2384×2240×1094	2384×2240×1094	2384×2240×1094	2384×2240×1094	2384×2240×1094	3402×2240×1094	3402×2240×1094
Voedingsspanning	V	-	400/3~/50 + N	400/3~/50 + N	400/3~/50 + N	400/3~/50 + N	400/3~/50 + N	400/3~/50 + N	400/3~/50 + N

* Energy efficiency class space heating: Scale A+++ to D

** Design limit value; actual achievable conditions depend on outdoor temperature and system design
